ZYXEL Kablosuz 300 Mbps 4-Port Access Point/Router

Wireless Standard

• 802.11 b/g/n

Wireless Transfer Rate

• Transmit: 300 Mbps*
• Receive: 300 Mbps*

Transmission Power

• CE: <=20dBm (2.4G frequency band: 2.400 – 2.4835 GHz)

Wireless Security

• 64/128 bit WEP, WPA-PSK/WPA2-PSK

WLAN Features

• Access point mode
• Universal repeater mode
• WiFi Protected Setup (WPS)
• WiFi Multimedia (WMM)
• Wireless scheduling
• Wireless output power management
• Auto channel selection
• MAC address filtering

Routing

• Network Address Translation (NAT)
• Connection type: Static IP, DHCP, PPPoE, PPTP
• DHCP server/client
• Dynamic DNS
• Bandwidth management
• Auto-IP change
• IPv6
• UPnP

VPN Pass-through

• IPSec
• PPTP
• L2TP

Firewall

• Denial of service (DoS) prevention

System Management

• Online firmware upgrade

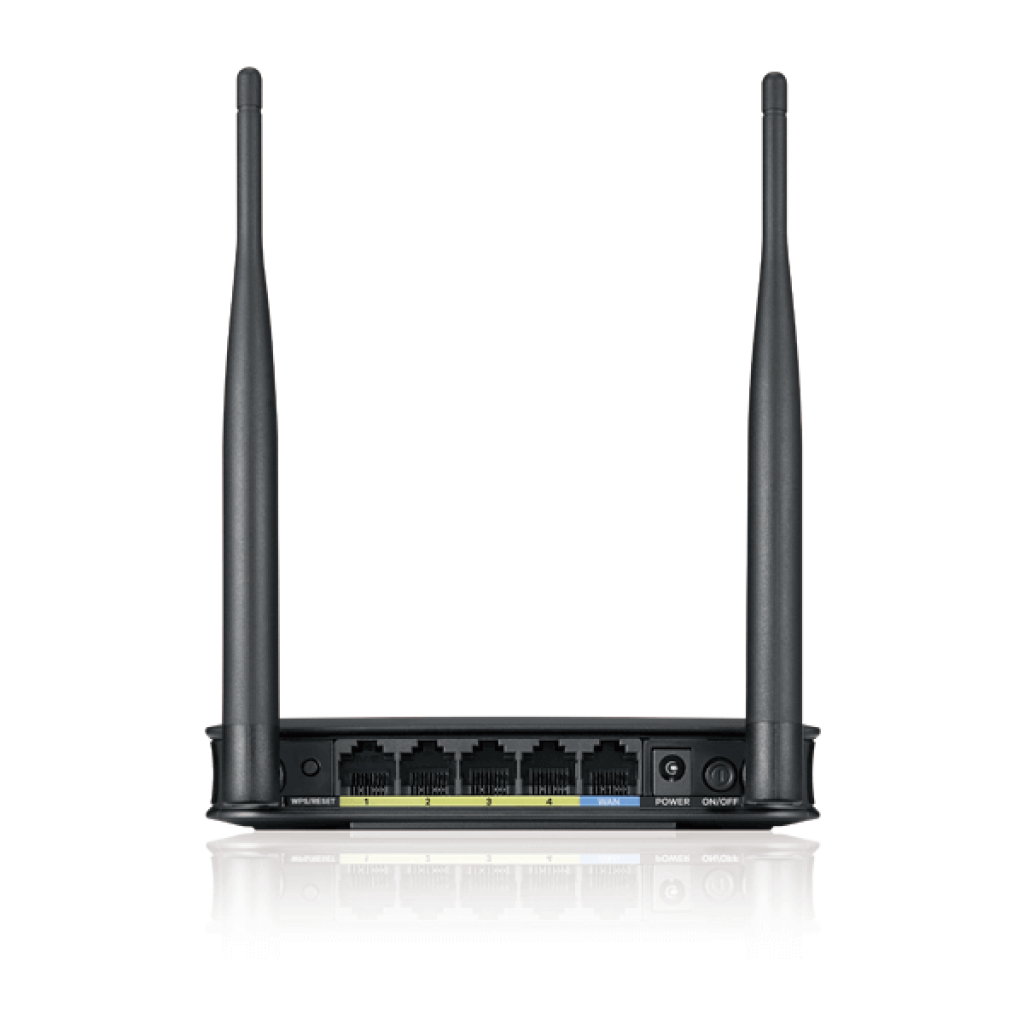

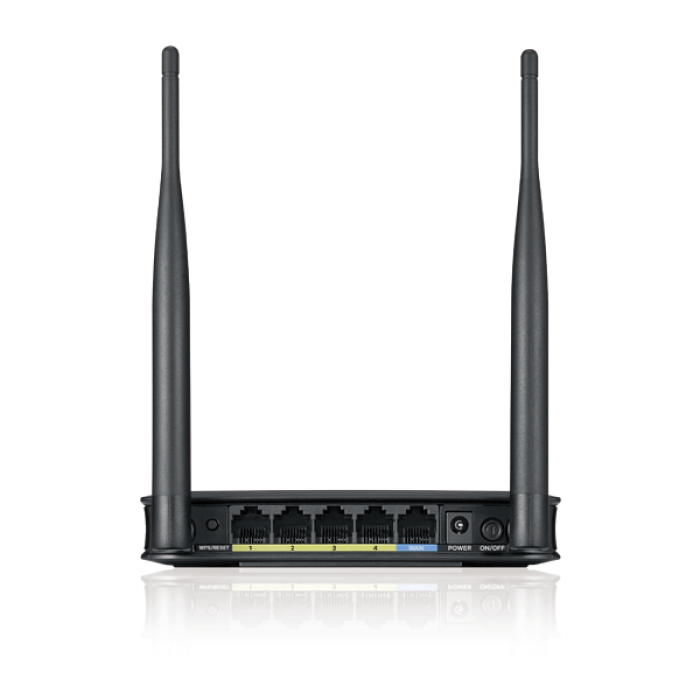

• WAN: One 10/100 Mbps Ethernet RJ-45 port
• LAN: Four 10/100 Mbps Ethernet RJ-45 ports with auto MDI/MDIX support

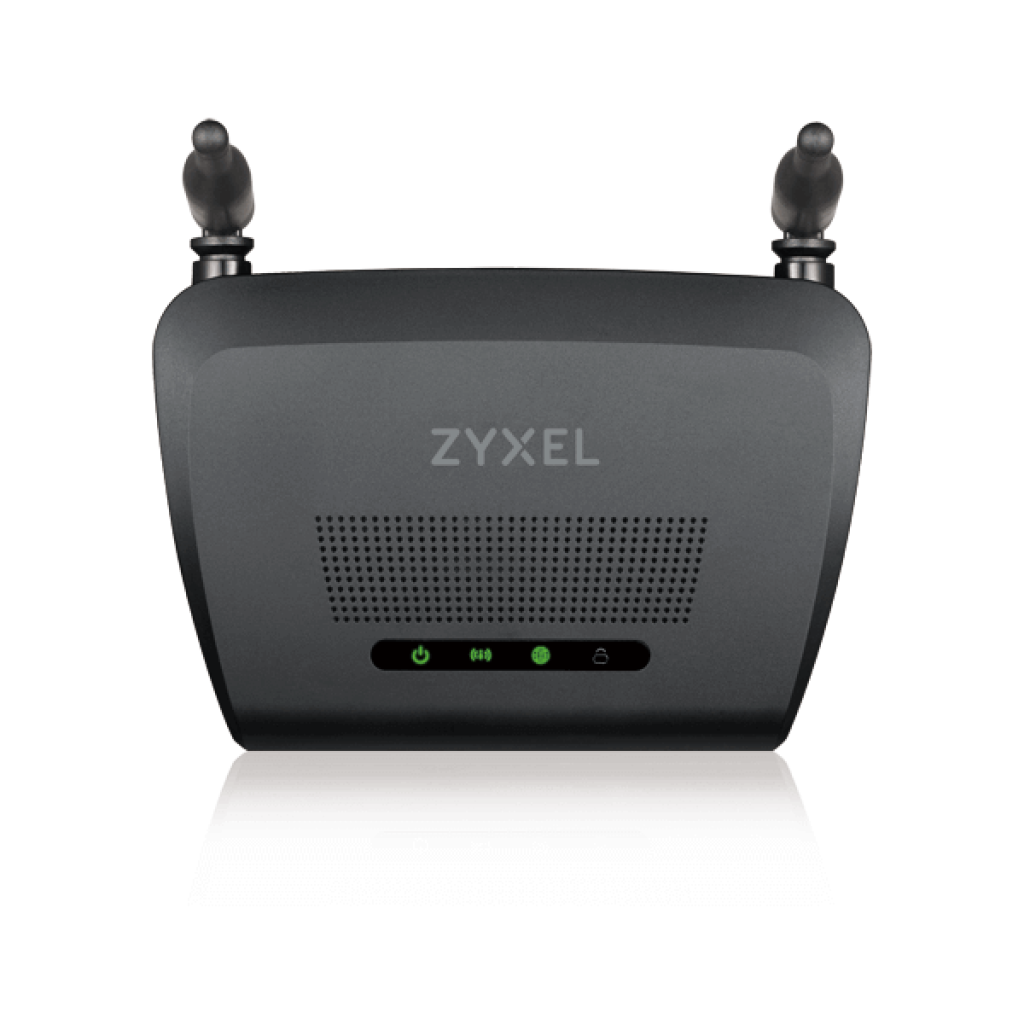

• LED indicators:
  • Power
  • WLAN
  • WAN
  • WPS
• Two 5 dBi fixed external antennas
• Button:
  • Power on/off button
  • WPS/Reset button
• Power: 5 V DC, 1 A
• Power consumption: 3.5 watt max.

• Item dimensions (WxDxH): 142 x 102 x 23 mm (5.59" x 4.01" x 0.91")
• Item weight: 148 g (0.33 lb.)
• Packing dimensions (WxDxH): 270 x 74 x 164 mm (8.1" x 2.22" x 4.92")
• Packing weight: 426 g (0.94 lb.)

Operating Environment

• Temperature: 0°C to 40°C (32°F to 104°F)
• Humidity: 10% to 90% (Non-condensing)

Storage Environment

• Temperature: -30°C to 70°C (-22°F to 158°F)
• Humidity: 10% to 95% (Non-condensing)

• Wireless router
• Power adapter
• Ethernet cable
• Quick start guide
  (Warranty card included)
